PhaseSlice
Released — Version 1.2.0.
5-band split-delay and phase-shaping plug-in
PhaseSlice is a macOS plug-in (AAX / AU / VST3) that goes one step past a band-pass filter: instead of simply isolating a frequency range, it lets you delay only that band and then blend it back with per-band mix, trim, polarity, and phase control.
Latest release: version 1.2.0 with resizable window support.
What it does
- Split the signal into 5 crossover-based bands that sum back together cleanly.
- Delay each band independently with Delay, Mix, and Trim controls.
- Delay time supports up to 50 ms with 0.01 ms control resolution.
- Version 1.2.0 adds resizable window support for a more flexible editing layout.
- Shape interference and depth with Polarity and All-pass phase amount per band.
- Keep the result practical with output trim, limiter, auto gain compensation, and delay smoothing options.

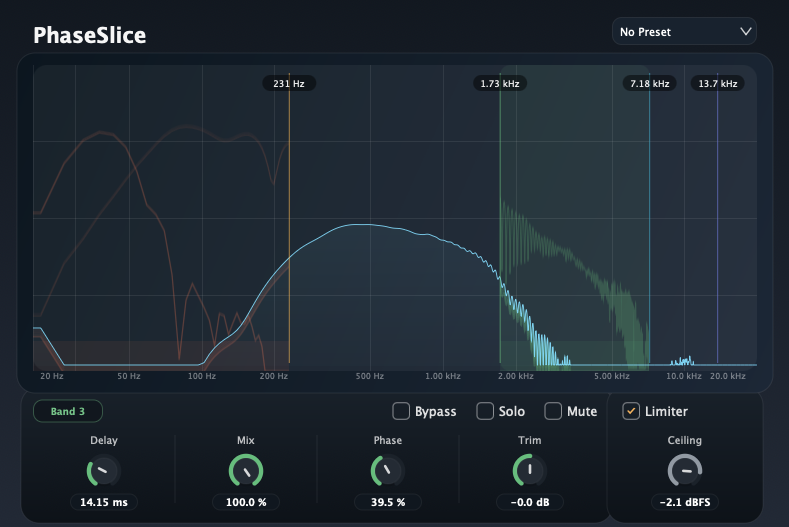

Interface overview
Top section
FFT display, crossover markers, and a delay profile view so the band timing shape is visible at a glance.
Bottom section
Focused editing for the selected band: delay, mix, trim, phase, polarity, solo, and mute.
Typical use cases
Kick shaping
PhaseSlice is especially useful on kick drums when you want to reshape the apparent weight, click, or front-edge timing of different frequency areas without simply boosting EQ.
Single-drum design
It also works well on individual drum hits such as snares, toms, or percussion when you want tighter low-end alignment, sharper attack focus, or slightly unusual phase-based texture.
While it can be used more experimentally on other material, the most practical starting point is usually drum sound shaping rather than full-mix processing.
Status
Current release state
- Release status: v1.2.0 is now available.
- Latest update: the plug-in window can now be resized.
- Delay range: maximum Delay remains 50 ms with 0.01 ms control resolution.
- Formats: AAX / AU / VST3 for Apple Silicon macOS.
- Focus: a usable band-delay tool rather than a novelty comb-filter effect.
- Not included: envelope-follow delay is not part of the initial release.
Release history
Current release.
- Window size can now be adjusted to fit different screens.
Previous release.
- Maximum Delay increased to 50 ms.
- Delay control resolution refined to 0.01 ms.
First public build of PhaseSlice for Apple Silicon macOS.
- Includes AAX / AU / VST3 plug-in formats.
- Includes 5-band crossover delay, per-band mix and trim, polarity, all-pass phase amount, solo and mute, and output safety controls.
Latest download: PhaseSlice_1.2.0.pkg
Requirements
- Apple Silicon Mac.
- A plug-in host that supports AAX (Pro Tools), AU, or VST3.
- Installer:
PhaseSlice_1.2.0.pkg
Install
- Download
PhaseSlice_1.2.0.pkgfrom this page. - Run the installer to place the AAX / AU / VST3 plug-ins into the standard macOS locations.
- Launch your host application and rescan plug-ins if needed.
Support
Email: kjdevapphelp@gmail.com
Please include your macOS version, host DAW, plug-in format, and a short description or screenshot.
